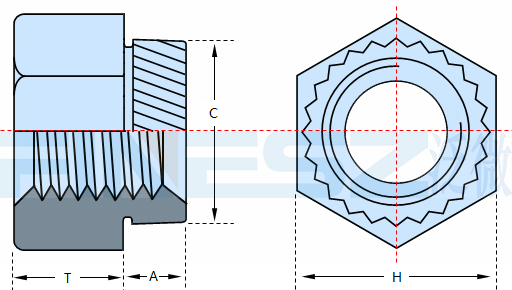

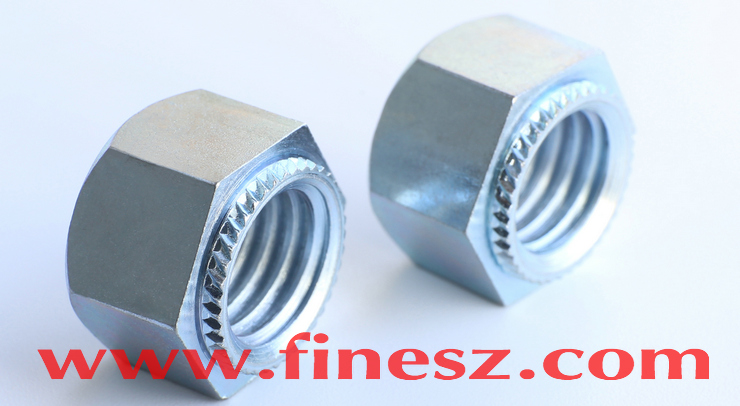

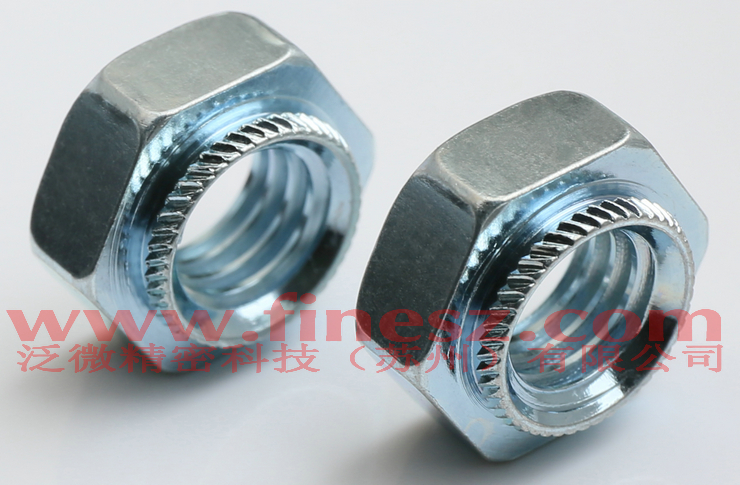

螺纹*螺距 | 型号TYPE | 螺纹尺寸 | 规格代号 | A Max |
最小 | 板孔径 | C ±0.1 |
H ±0.25 |
T ±0.25 |
最小 边距 |
|
碳钢 | 不锈钢 | 板厚 | ±0.04 | ||||||||
M3*0.5 | BN | BNS | M3 | 1 | 0.9 | 1 | 4.5 | 4.7 | 5.5 | 2.11 | 5.6 |
2 | 1.8 | 2 | 3.03 | ||||||||
M4*0.7 | BN | BNS | M4 | 1 | 0.9 | 1 | 5.5 | 5.7 | 7 | 2.23 | 6.7 |
2 | 1.8 | 2 | 2.67 | ||||||||
M5*0.8 | BN | BNS | M5 | 1 | 0.9 | 1 | 6.5 | 6.75 | 8 | 2.96 | 7 |
2 | 1.8 | 2 | 3.12 | ||||||||
M6*1.0 | BN | BNS | M6 | 1 | 0.9 | 1 | 8 | 8.25 | 10 | 4.04 | 8.7 |
2 | 1.8 | 2 | 3.24 | ||||||||
M8*1.25 | BN | BNS | M8 | 1 | 0.9 | 1 | 10 | 10.35 | 13 | 4.63 | 9.5 |
2 | 1.8 | 2 | |||||||||
M10*1.5 | BN | BNS | M10 | 1 | 0.9 | 1 | 12.5 | 12.85 | 15 | 6.12 | 10 |
2 | 1.8 | 2 | |||||||||
M12*1.75 | BN | BNS | M12 | 1 | 1.8 | 2 | 14.5 | 14.85 | 17 | 8.31 | 12 |
2 | 2.8 | 3 | 7.31 |
