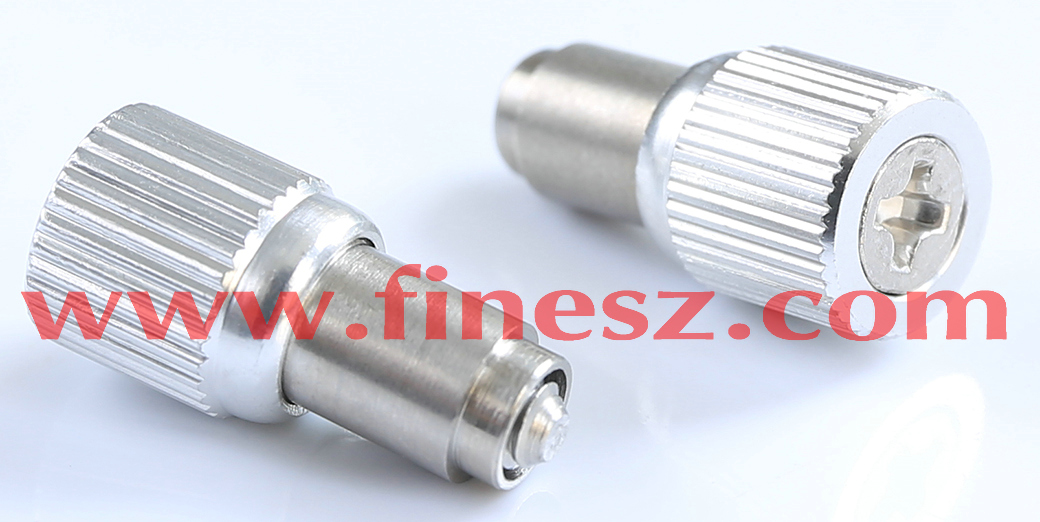

| 螺纹*螺距 | 型号TYPE | 螺纹 代码 |
规格 代号 |

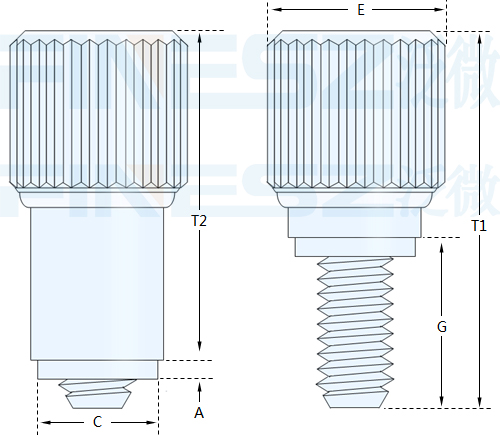

A | 板厚 | 板孔径 | C | B | E | G | T1 | T2 | 槽 | ||
| 铝 | 不锈钢 | ±0.1 | +0.08 | Max | ±0.1 | ±0.25 | ±0.4 | NOM | NOM | 十字槽号 | 一字槽宽 | ||||
| M2.5*0.45 | PF09 | PF10 | M2.5 | 0 | 1 | 0.8~1.5 | 4.0 | 3.98 | 0.4 | 7.0 | 5 | 14.5 | 13.4 | #1 | 0.8 |
| 1 | 1.5 | 1.5~2.0 | 0.4 | 6 | 15.5 | 0.8 | |||||||||
| 2 | 2.5 | 2.0~3.0 | 0.4 | 7 | 16.5 | 0.8 | |||||||||
| M3*0.5 | PF09 | PF10 | M3 | 0 | 1 | 0.8~1.5 | 4.5 | 4.48 | 0.4 | 8.0 | 5.3 | 14.8 | 13.4 | #2 | 0.8 |
| 1 | 1.5 | 1.5~2.0 | 0.4 | 6.3 | 15.8 | 0.8 | |||||||||
| 2 | 2.5 | 2.0~3.0 | 0.8 | 7.3 | 16.8 | 0.8 | |||||||||
| 部件名称PART | 材质MATERAIL | 表面SURFACE |
| KNOB旋扭: | 参考表中"TYPE" | Natural |
| RETAINER压铆套: | Stainless steel | Natural |
| SCREW 螺丝： | Stainless steel | Natural |
| SPRING 弹簧： | Stainless steel | Natural |
